Multifunctional Oilfield Vehicles Flushby Rig For Well Flushing / Sand Washing Workover serices Well repairing

Beijing Ocean Renda Petroleum Equipment Co., Ltd.
Contact Now

Multifunctional Oilfield Vehicles Flushby Rig For Well Flushing / Sand Washing Workover serices Well repairing

  • 1
  • 2

Brand Name : Renda

Certification : API

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : Based on Detailed Order

Delivery Time : 10-15 working days

Packaging Details : Standard wooden export box

Application : Oil field

Type : Special Service Vehicle

Condition : New

Contact Now

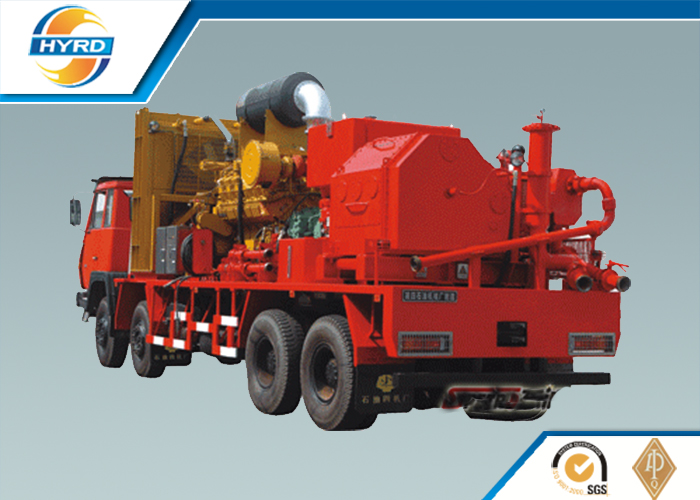

Flushby Rig , for well flushing and sand washing in thick oil well , Oilfield Cementing Equipment

Description:

The flushby rig is a multifunctional equipment mainly used for well flushing and sand washing in thick oil well, and performing quick workover service of shallow/thick oil well. It is the next generation of service machine that outperforms service unit, pump truck and crane truck working together. The equipment can service wells slanted more than 45 degree with a rated load of 15-25 tons. HYRDpetro is the only qualified manufacture of flushby rig in China.

Highlights:

1. Flushby rig can substitute the crane, flush truck, pump truck in sand washing work of heavy oil well in rotary screw pump type. It can also work as a light and efficient small workover rig. It is a true all in one complex unit. .

2. The mast is equipped with long diagonal draw bar to open and shut automatically, which makes the rig not only facilitate horizontal drilling, but also function on a well slanted at a 45 degree angle

Specifications:

Chassis Type

Hongyan Chassis (6×4)

Traveling System

1×2

Engine

Cummins

Effective Lines

2

Power

215kW ( 289hp) /1400rpm

Triplex Pump Input Power

137kW (184hp)

Working Temperature

-40o C~40o C

Water Power

118kW (160hp)

Overall Dimensions

15.1×2.48×3.93m (49.5×8.2×12.9ft)

Max. Pressure

3,500psi (24.5MPa)

Weight

24,800kg (54,670 lb)

Tank Volume

8m³ (50 bbl)

Max. Travel Speed

75km/h (46mph), but Limit 45km/h (28mph)

Max. Working Pressure

0.6MPa (86psi)

Mast Height

18m ( 59ft)

Suitable Media Temperature

0o C~120o C

Max. Static Hook Load

225kN (50,600 lbf)

Multifunctional Oilfield Vehicles Flushby Rig For Well Flushing / Sand Washing Workover serices Well repairing
